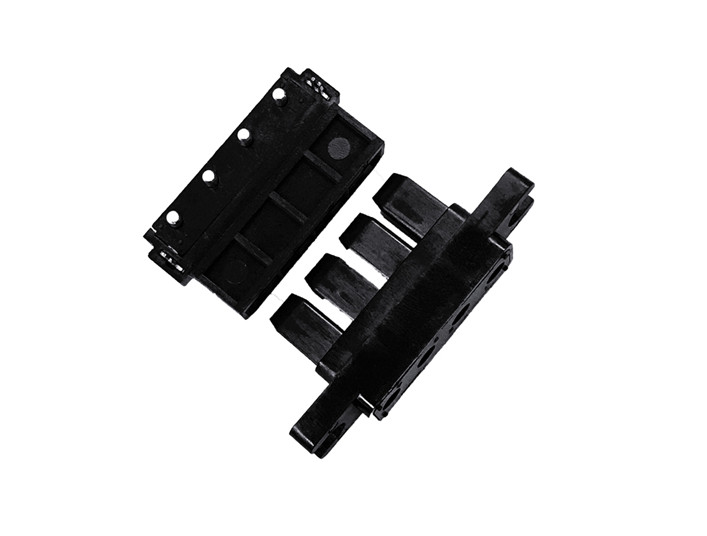

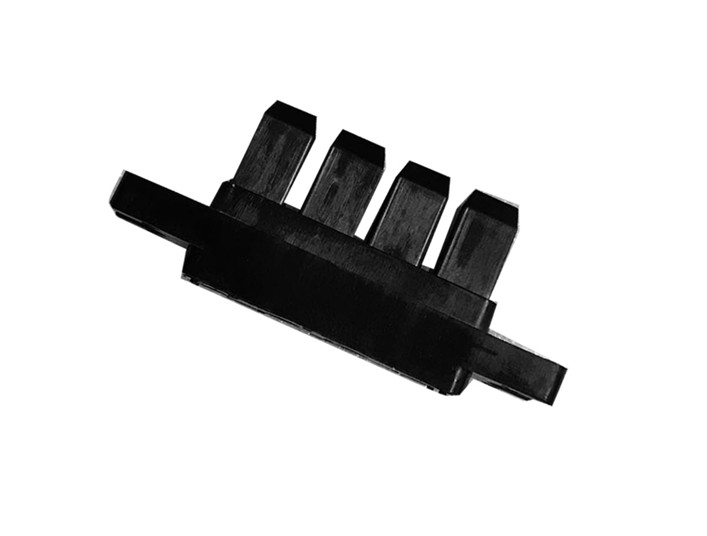

產(chǎn)品名稱：4-pin modular connector plug
產(chǎn)品型號：JGT-DJL04-4TJW-1
產(chǎn)品詳情：
DJL04 module connector
Power Contacts: 4 Pins
Rated current: 35A
Contact Resistance: 1.0(1.6)mΩ
Pressure resistance: surface silver plated, nickel plated on the bottom
Terminal form: Pin: Crimp pin B. Jack: Crimp Type Y, Plate Type B, Solder Type H
Surface treatment: surface silver plating, nickel plating on the bottom
Material: Pin, Jacket Jacket Brass or Copper Alloy
Crown Spring Bronze
Insulation resistance: ≥1000MΩ
Mechanical life: 1000 times
Shell Material: PBT G30UL94V-0 Black
